NA250 Wet Separator - RUWAC Industrial Vacuum Cleaner: RUWAC Asia

More capacity. More security. More reserve.

The large wet separator for processes involving high material feed rates and the most stringent safety requirements—with built-in capacity to effectively mitigate risks.

Separation principle: Wet separation with a dip tube and a swirl screen
Volume: 75 L liquid capacity
Media: reactive, explosive, pyrotechnic dusts
Material: Sheet steel or V2A
Residual dust: optional filter class M or H
Integration: as a pre-separator upstream of industrial vacuum cleaners

Show technical data Show less

Watch Video

The NA250 is a wet separator designed for large volumes of reactive or explosive dusts. A large liquid volume and efficient wetting ensure high safety and long service life. Forced ventilation further enhances operational safety. For safety-critical applications involving high dust generation and demanding processes.

The highlights.

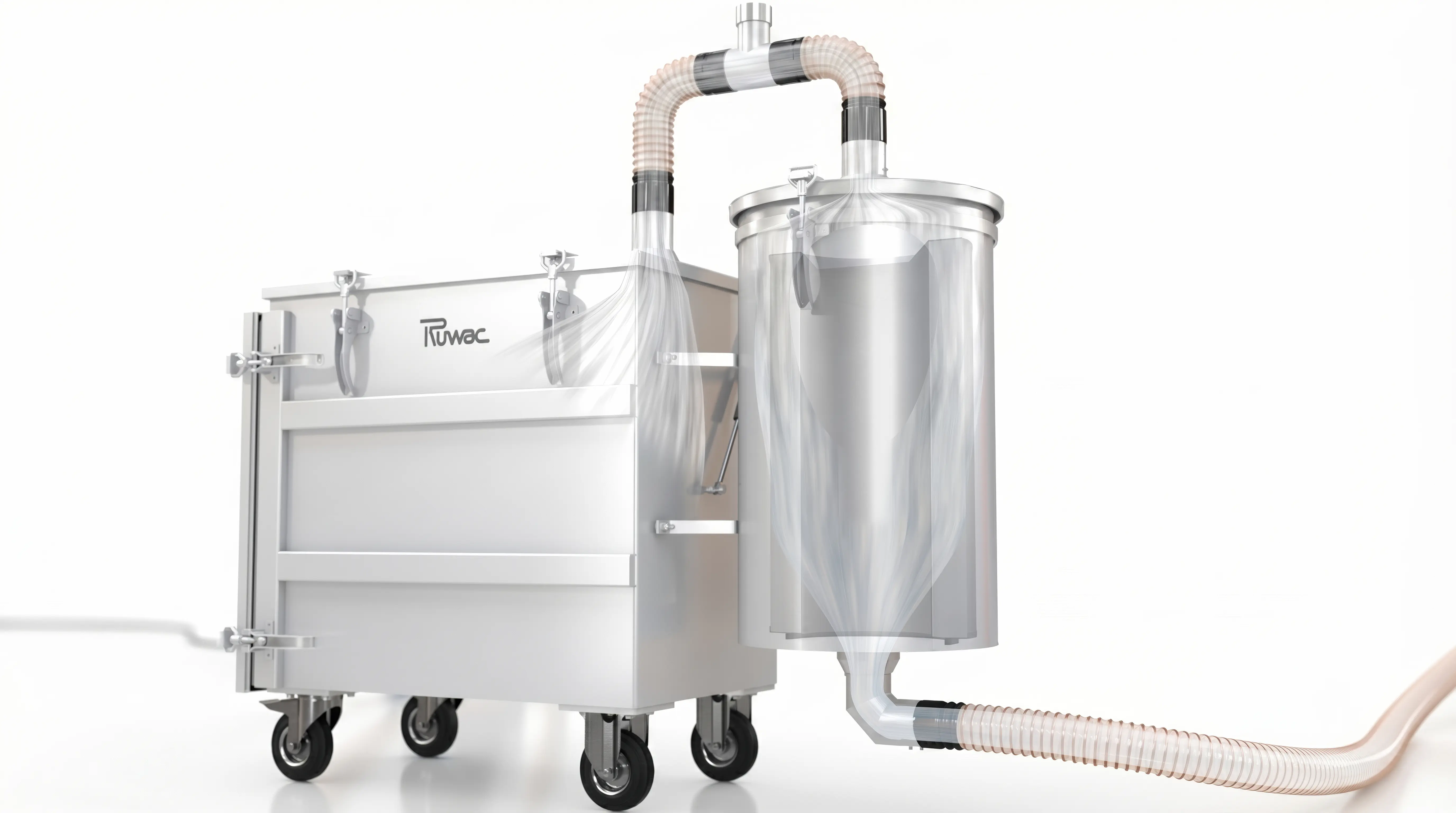

75 l liquid capacity: longer operating intervals, high intake capacity and fewer liquid changes.

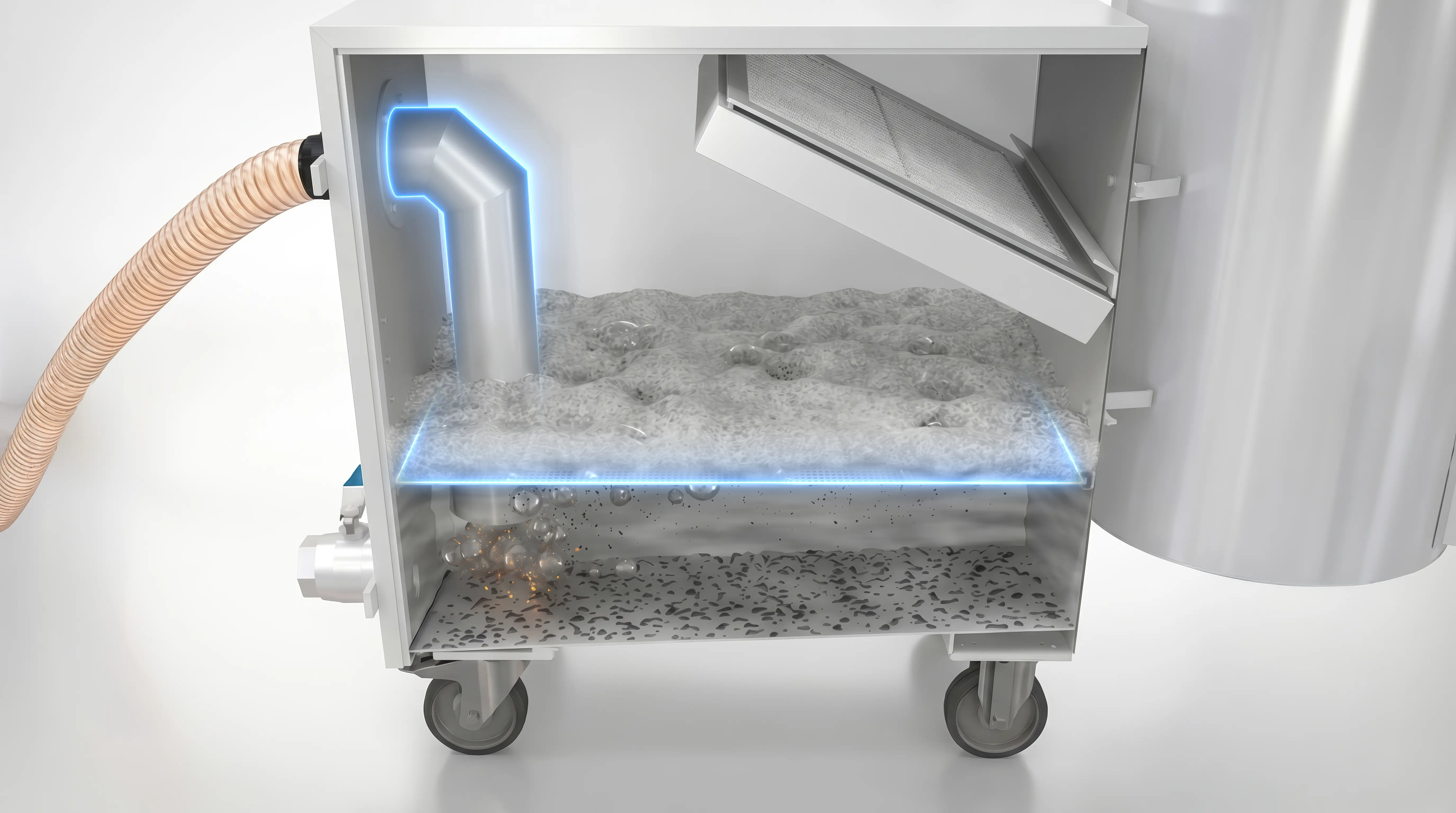

Immediate wetting at the inlet: the immersion tube and turbulence screen provide almost complete particle capture, including sparks and abrasive grinding particles.

Controlled gas venting: self-opening ventilation safely releases hydrogen generated in the process.

Easy to empty and clean: a design that opens on all sides allows quick liquid changes and easy access.

Optional M/H residual dust filtration: additional protection where required.

Take a closer look.

NA250-

NA250 – Certificates

3D model is loading...

Use the left and right arrow keys to switch

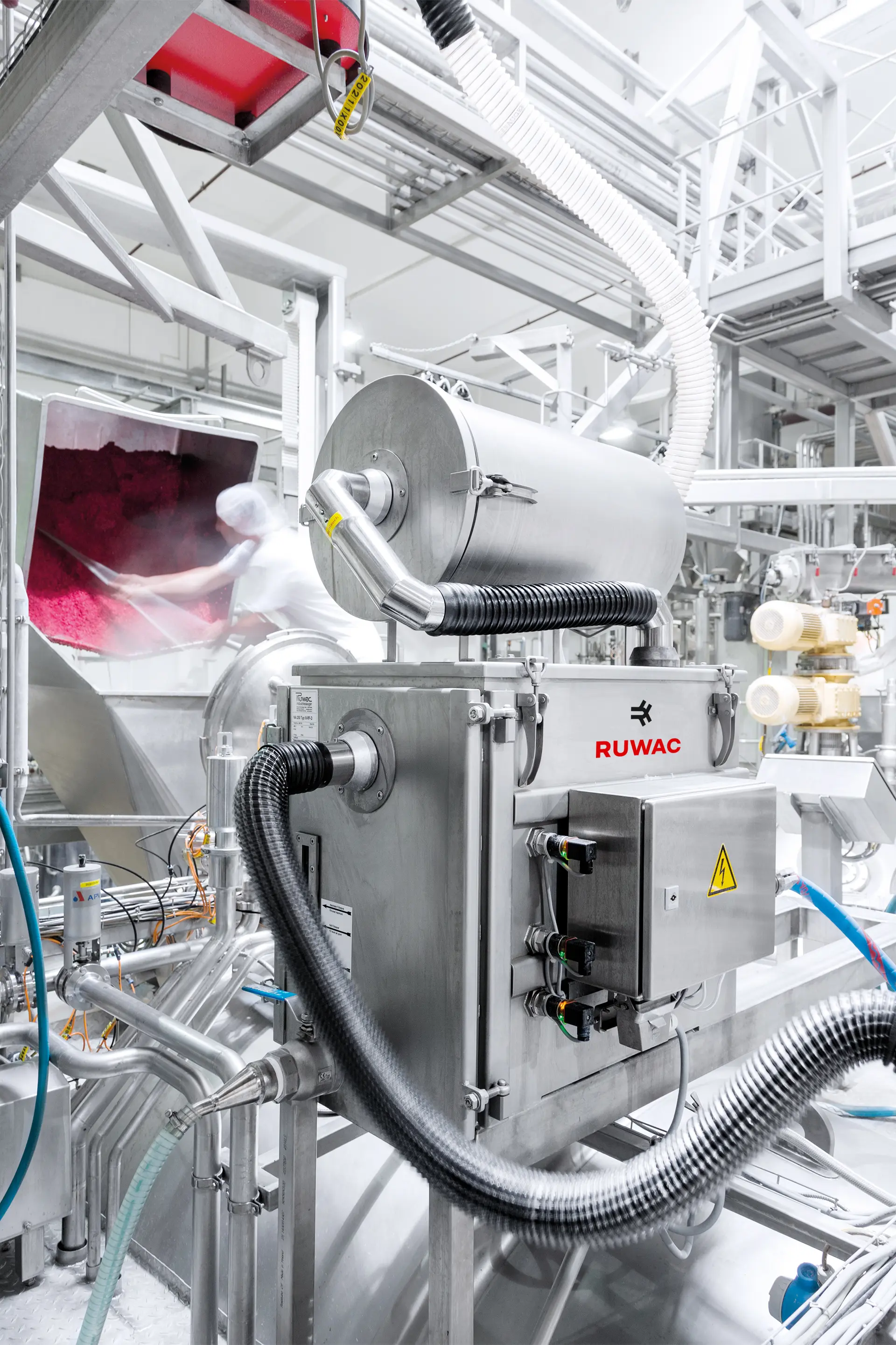

Large capacity. High security. Ample reserve.

The NA250 is the wet separator for processes where safety margins are critical.
With a liquid capacity of 75 liters, it reliably captures reactive, explosive, or pyrotechnic dusts and significantly extends service life.

Sparks, hot grinding particles, or abrasive media are immediately submerged in liquid and wetted. This mitigates risks early on—before they can damage filters, equipment, or processes.
The result is stable operations, predictable maintenance intervals, and a high degree of process reliability, even with demanding materials.

More reserve, fewer interruptions

Large capacity for long operating times with continuous material feed.

Safety Through Binding

The material being sucked up is passed directly under the liquid and neutralized in a controlled manner.

Stable with critical media

For pyrotechnics, additive manufacturing, metalworking, and specialty processes.

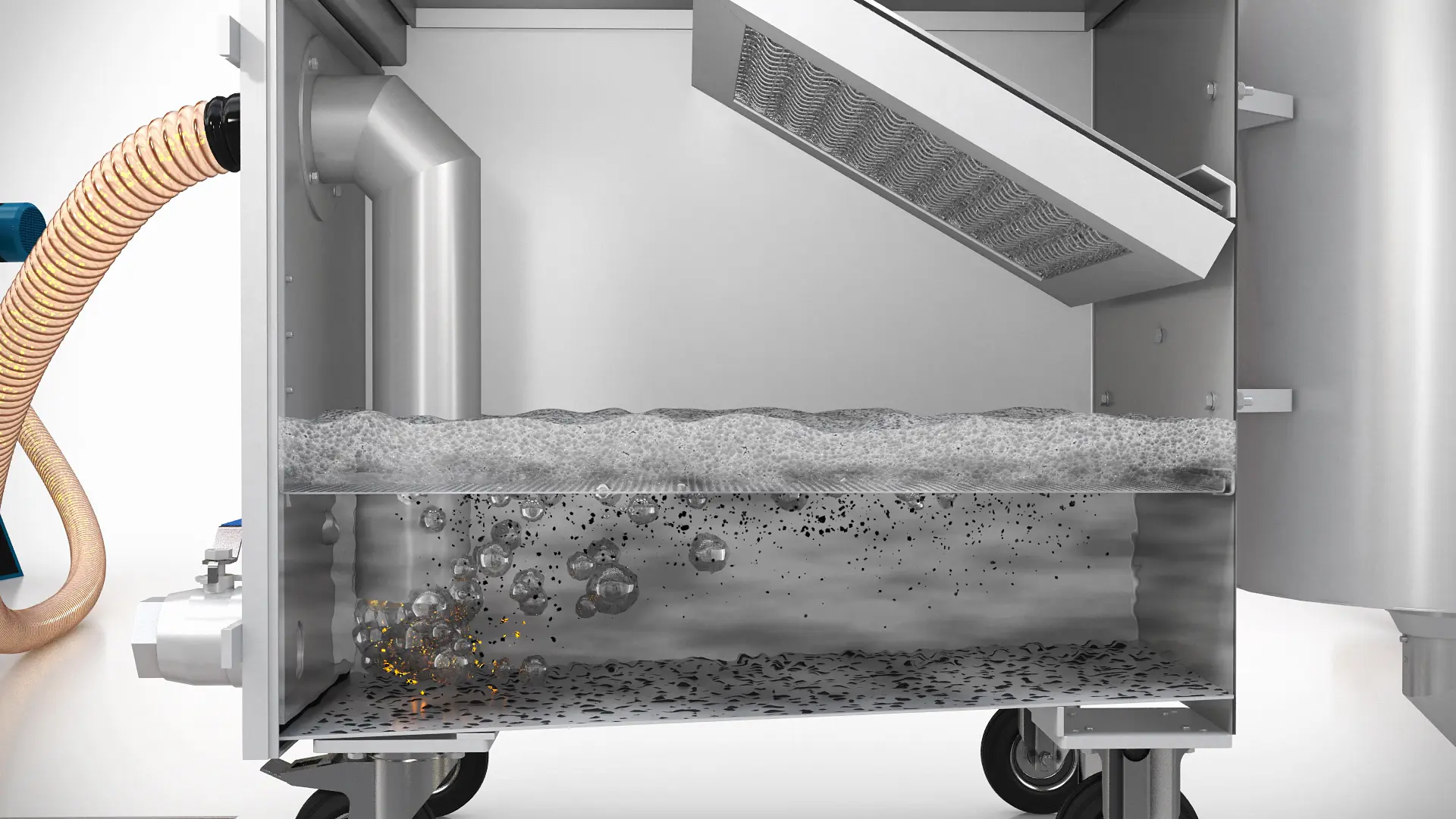

Greater safety before things get critical.

The NA250 operates where risks arise: upstream of the vacuum cleaner. As a wet separator, it captures and neutralizes hazardous dust before it reaches filters, components, or equipment.

This makes it a preventive safety component in the system—not a reaction, but a proactive measure. Processes remain stable, filters are relieved of load, and the service life of downstream equipment is extended.

Neutralized before the filter

– Provides long-lasting relief for the suction unit and filter.

Passive, but effective

– No self-contained drive system; easy to integrate.

Grows with the process

– Can be used temporarily, permanently, or as an upgrade.

Thinking ahead.

At RUWAC, it all starts with a simple question: What do you really need?

Whether it’s a standard model, a modular design, or a custom-built system—we don’t build for the average, but for specific applications. For your processes. Your requirements. Your safety. We make what’s technically feasible a reality. And what doesn’t exist yet, we develop—together with you.

Because when it comes to industrial extraction, we never settle for standard solutions. Only for the best solution.

Strong in the details.

RUWAC wet separators aren’t just made of high-quality components—they’re built on well-thought-out solutions. From the housing to the control system, every detail is designed for durability, safety, and efficiency. For everyone who relies on reliable technology every day.

Mehr Volumen. Mehr Kontrolle.

With a liquid capacity of 75 litres, the NA250 offers substantially greater reserves than smaller wet separators. Reactive or explosive dusts are captured directly in liquid to control their hazards. The large capacity supports long operating periods, reduces change frequency and improves process stability, particularly with continuous or highly variable material input. An integrated sight glass allows the fill level to be checked at any time.

Learn more Show less

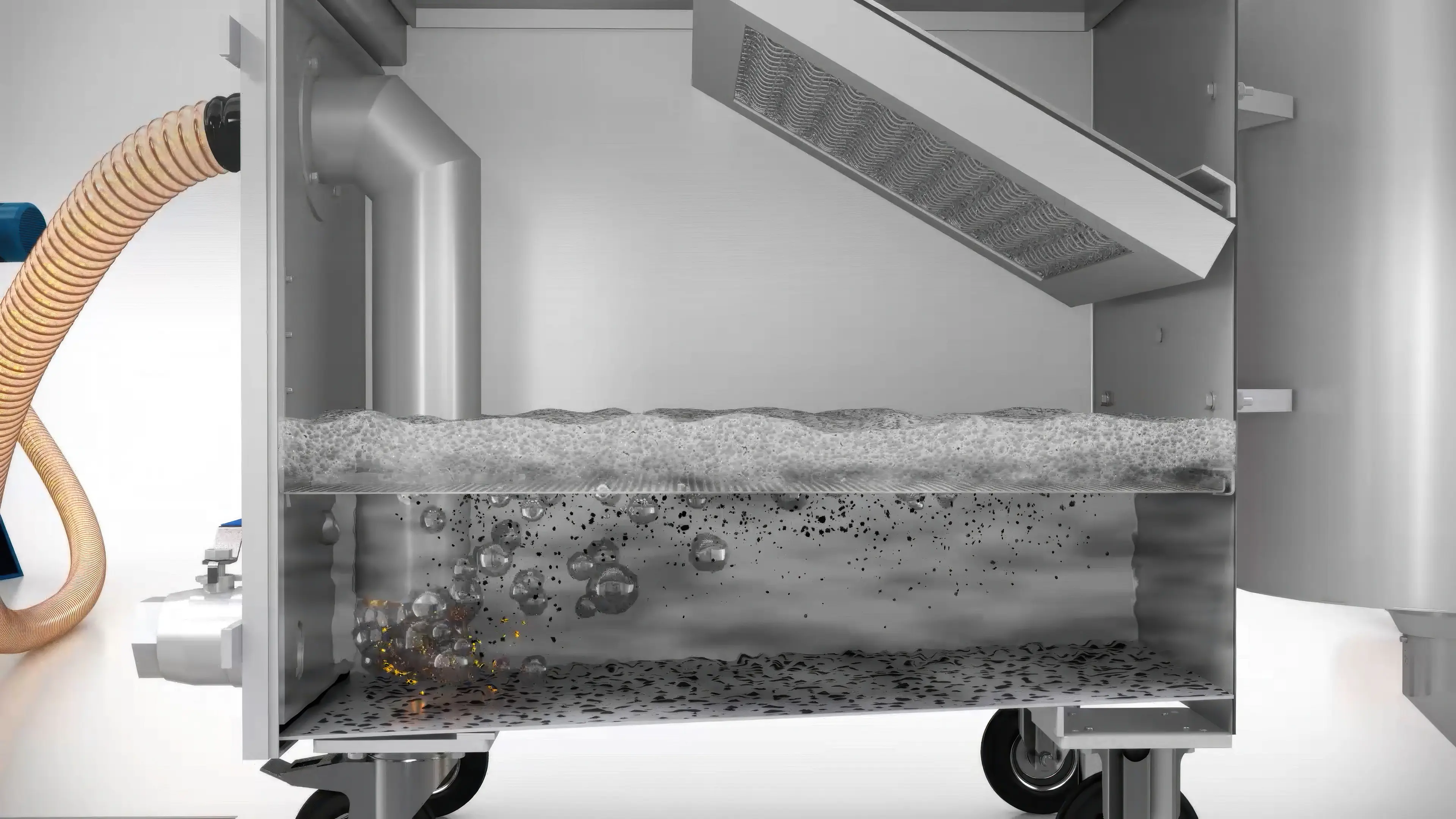

Capturing sparks before they become a hazard.

The immersion tube, turbulence screen and demister form a coordinated system in the NA250. Collected material is directed below the liquid surface, air bubbles are broken up and fine droplets are separated. This controls dust, hot particles, sparks and abrasive grinding residues before they reach downstream components. The result is almost complete wetting and a high level of process safety.

Learn more Show less

Kontrollierte Ableitung entstehender Gase.

Capturing reactive materials can generate hydrogen. The NA250 accounts for this in its design: a self-opening valve provides controlled venting of the gases produced and prevents excessive pressure or gas accumulation in the system. This protective function is integrated into the design.

Learn more Show less

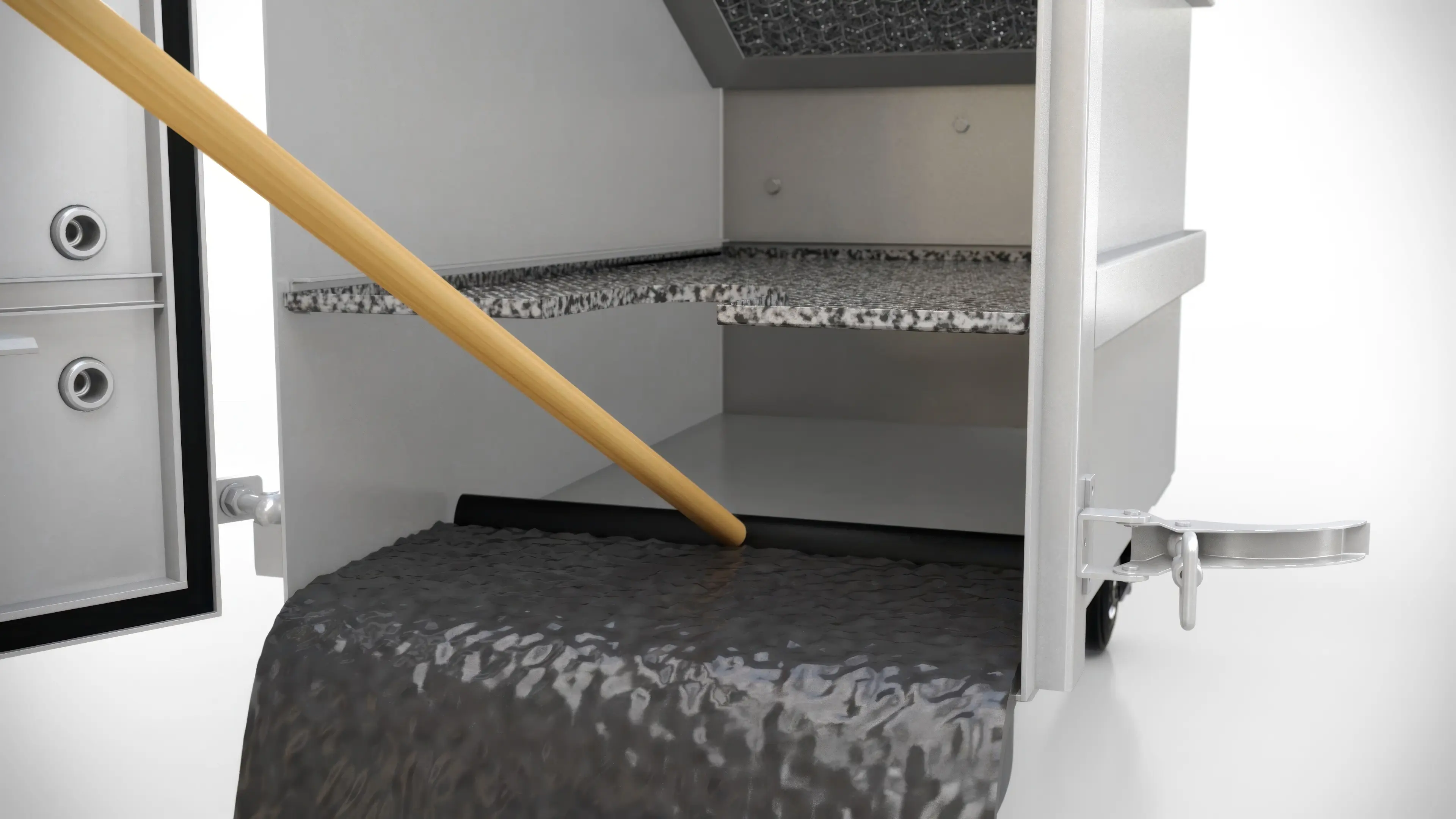

Straightforward maintenance and draining.

Despite its size, the NA250 is easy to maintain. A design that opens on all sides, smooth surfaces and accessible components simplify cleaning and service. An integrated outlet with a ball valve allows controlled draining without moving or dismantling the separator. This saves time, reduces exposure and keeps routine work clean.

Learn more Show less

Maintenance that goes the extra mile.

Industrial vacuum systems have to work reliably at all times. RUWAC Asia supports customers through regional sales, service and partner teams across Asia—responsive, technically experienced and close to your operation.

Our specialists understand RUWAC systems and coordinate the right technical support, spare parts and service response for your location.

RUWAC Service helps keep production running, protect your investment and extend equipment life, with maintenance and support planned around your operating requirements.

Protects what matters. Without compromise.

What sets RUWAC apart is that we take responsibility. For people, processes, the environment—and for the moment when it really counts. Our equipment is designed for maximum safety. And so are we. From explosion protection to health and sustainability to fast on-site service: at RUWAC, safety means you can rely on everything. And on everyone.

Product safety

Our industrial vacuums meet the highest safety standards - optionally with ATEX certification, a robust design, and well-thought-out protection mechanisms. For permanently safe operation - even under extreme conditions.

Workplace safety

Ergonomic design, easy handling, and clearly recognizable controls reduce risks in everyday work - and create more safety directly at the point of use.

Health protection

We filter before danger arises: our systems minimize fine dust exposure, reduce noise emissions, and actively contribute to workplace health protection.

Environmental protection

Sustainability is an integral part of our development process. Our systems are energy-efficient, built to last, and made from recyclable materials.

Fast local support

Safety through proximity: our sales and service teams are deployed nationwide - with experience, technical know-how, and what often matters most: availability. Our service technicians carry many spare parts directly in their vehicles - for immediate help without waiting.

Investment security

A Ruwac lasts. High-quality components, modular technology, and reliable support safeguard your investment - today and for many decades to come. This creates real operational security - backed by manufacturing in Germany that sets standards in sustainability, efficiency, and occupational safety.

Why RUWAC is the best place to buy your industrial vacuum.Why RUWAC?

RUWAC quality. Supported across Asia.

Every RUWAC system is built to defined quality standards. RUWAC Asia provides regional application engineering, commissioning and after-sales support from Chonburi.

Exactly the vacuum you need

We listen, then develop a solution that fits your requirements.

Extremely durable

Whether GRP or sheet steel, we use materials that are robust, durable and safe, even under the toughest conditions.

The right filter

Specialized filters tailored to your application, developed with leading filter specialists.

Always one step ahead

Decades of experience combined with in-house research and development.

50 years of quality

Building the best vacuums has been our ambition every day since 1976.

Frequently Asked Questions (FAQ)

For processes with high dust input and elevated risks, such as pyrotechnic applications, additive manufacturing, metal grinding or reactive mixtures.

Reactive, explosive, pyrotechnic and abrasive dusts, as well as sparks and hot particles that require controlled capture in liquid.

It extends operating periods, increases the safety reserve and reduces interruptions during continuous material input.

Yes. It is designed as a pre-separator and can be integrated into existing extraction and vacuum systems without modification.

Only where required. The NA250 can optionally be fitted with class M or H residual dust filters when additional protection is needed.

NA250-

Housing

Edelstahl / Stahlblech

Cartridge filter, dust class M

10 m2

Height (dust class L, M)

1.100 mm - 1.820 mm

Width

580 mm - 930 mm

Length

985 mm - 1.860 mm

Capacity

75 l - 300 l

Suction inlet

50 mm - 100 mm
