DA5

DA5

More power. More volume. More freedom.

For large volumes, heavy materials, and industrial processes that tolerate no compromises. The DA5 combines high performance in continuous operation with a separation unit that adapts precisely to your waste disposal needs.

  • Operation: 24/7 continuous operation
  • Drive: Side channel compressor up to 15 kW
  • Suction capacity: high vacuum pressure & high flow rate
  • Discharge: Continuously adjustable separation unit
  • Filter: Pocket filter, 4.5 m², dust class M or H
  • Explosion protection: ATEX zone 22
  • Mobility: forklift-handled (integrated forklift pockets)

    The DA5 is a high-performance industrial vacuum designed for large volumes of dust and continuous extraction. With its high suction power, automatic filter cleaning, and robust steel construction, it is capable of 24/7 operation. Material can be discharged directly into big bags or customer-supplied containers. Optional ATEX zone 22 certification available. Ideal for high-volume processes with integrated disposal.

    The highlights.

    An adaptable separation unit: The filtering separation unit can be lowered continuously and adjusted precisely to fit the customer’s own containers, big bags, or collection stations. This enables direct disposal without the need for transfer—clean, efficient, and integrated into the process.

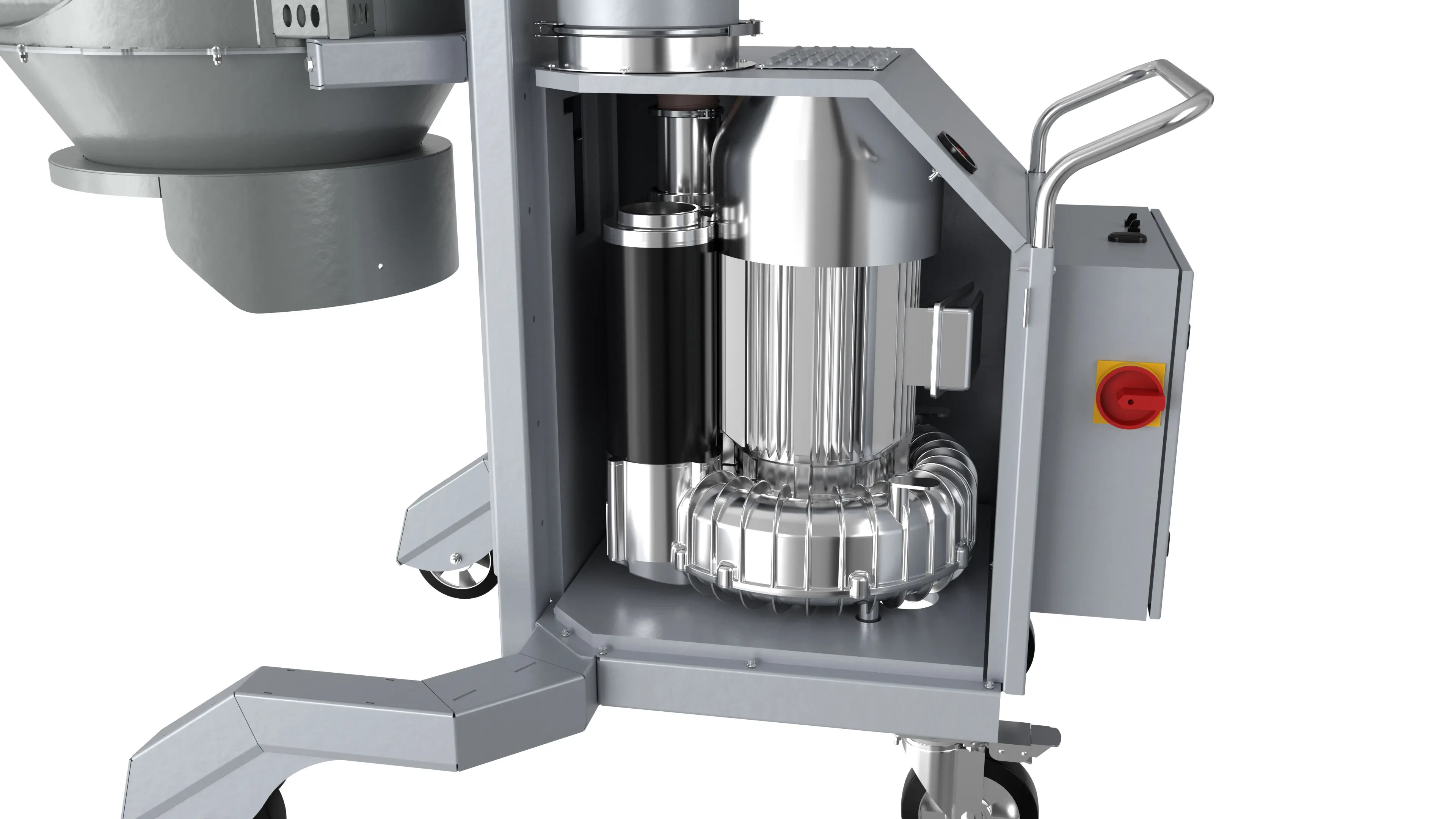

    High airflow for heavy materials: The side-channel blower delivers consistently high vacuum pressure and a powerful air flow rate. Ideal for large volumes, heavy materials, and continuous operation in everyday industrial use.

    High airflow for heavy materials: The side-channel blower delivers consistently high vacuum pressure and a powerful air flow rate. Ideal for large volumes, heavy materials, and continuous operation in everyday industrial use.

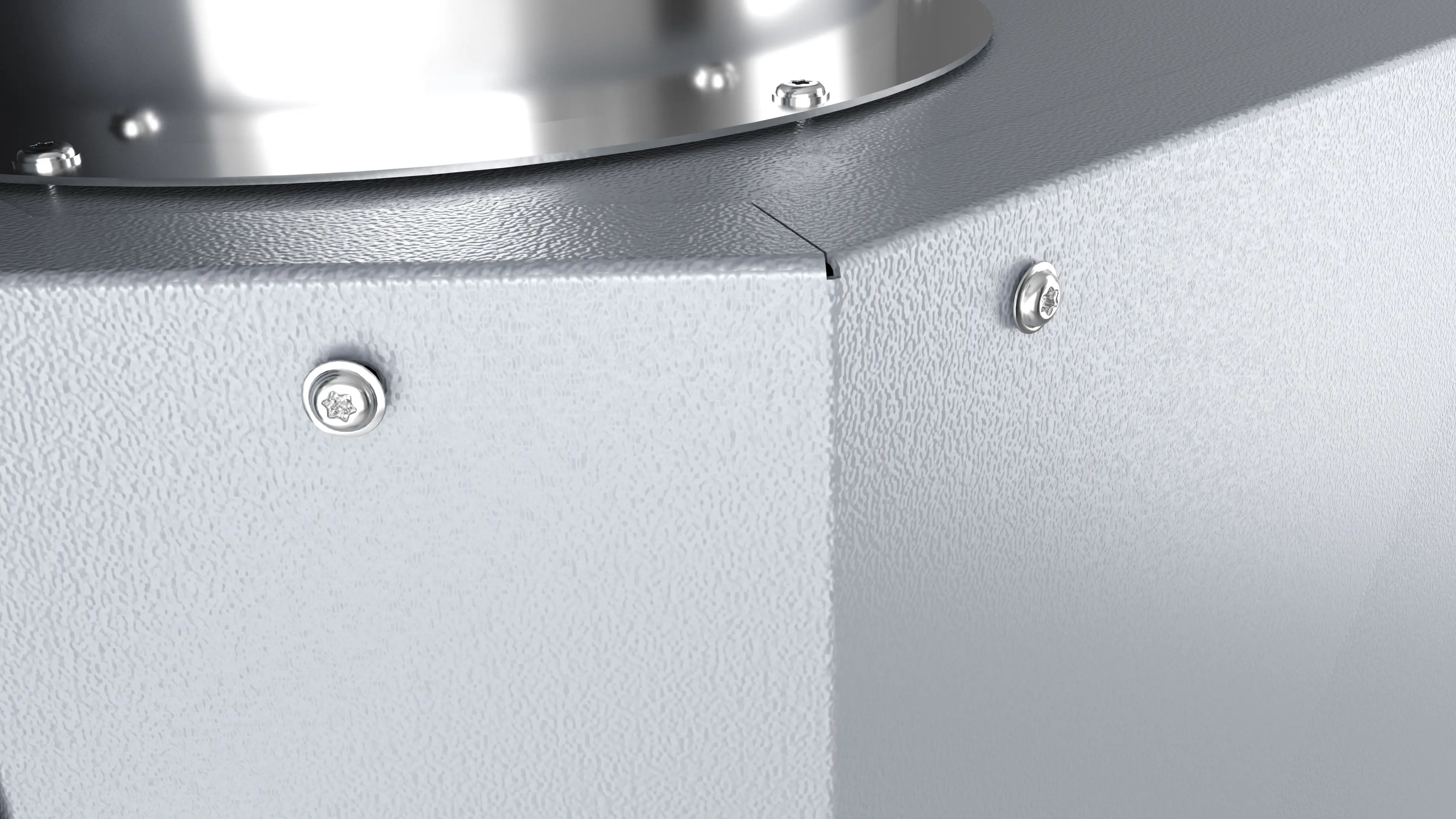

    Robust steel housing for heavy-duty use: The 3-mm-thick sheet steel housing provides reliable protection against mechanical stress, ensures durability, and makes the DA5 resilient in harsh production environments.

    Robust steel housing for heavy-duty use: The 3-mm-thick sheet steel housing provides reliable protection against mechanical stress, ensures durability, and makes the DA5 resilient in harsh production environments.

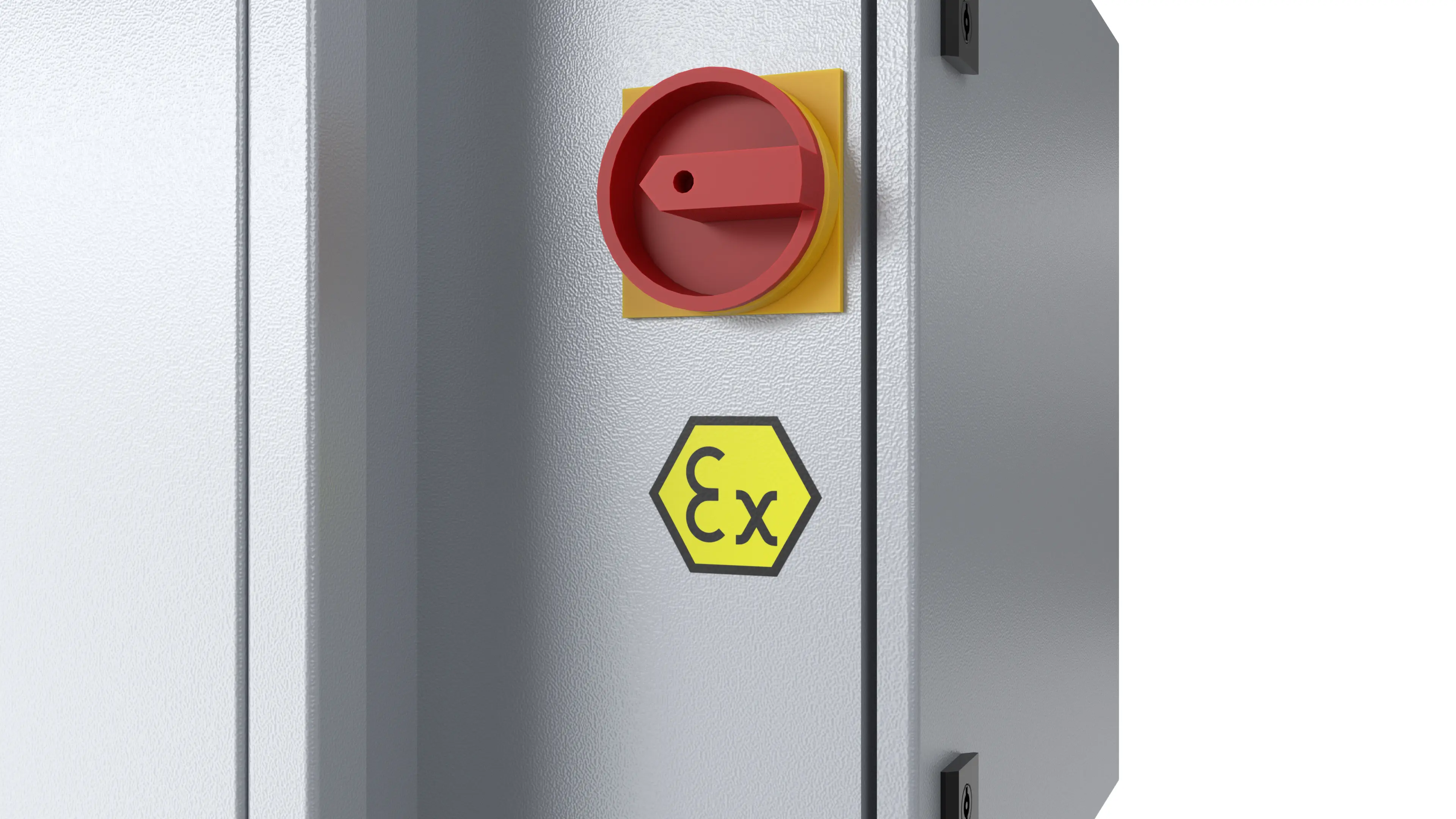

    ATEX zone 22 – Safety designed for production environments: Designed to meet ATEX standards for zone 22, the DA5 enables the safe handling of combustible dusts—integrated into the process without the need for additional protective measures.

    ATEX zone 22 – Safety designed for production environments: Designed to meet ATEX standards for zone 22, the DA5 enables the safe handling of combustible dusts—integrated into the process without the need for additional protective measures.

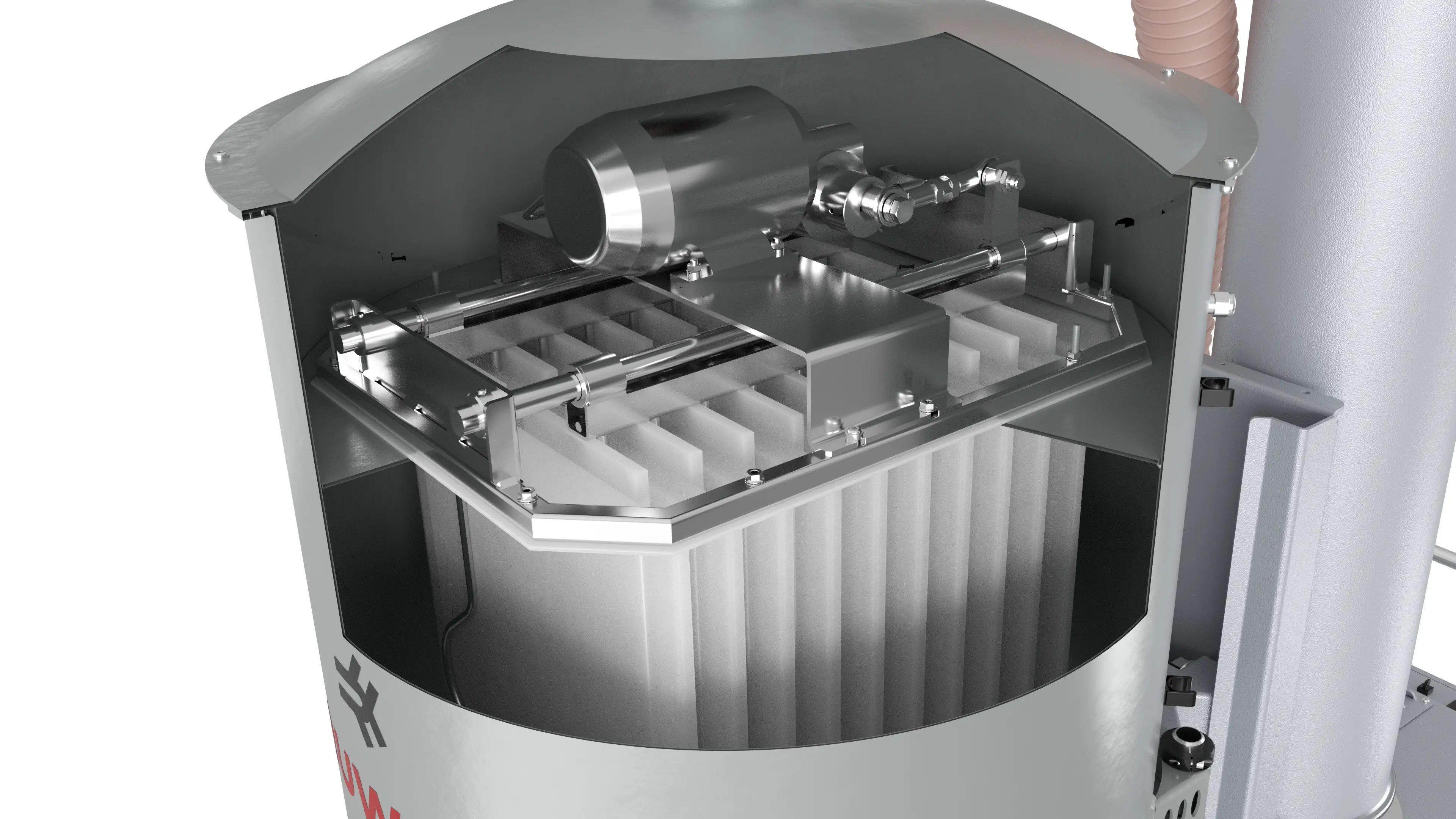

    Automatic filter cleaning for consistent performance: Differential pressure-controlled cleaning ensures that the pocket filter maintains its performance over the long term. This reduces maintenance requirements, extends service life, and ensures stable suction performance during continuous operation.

    Automatic filter cleaning for consistent performance: Differential pressure-controlled cleaning ensures that the pocket filter maintains its performance over the long term. This reduces maintenance requirements, extends service life, and ensures stable suction performance during continuous operation.

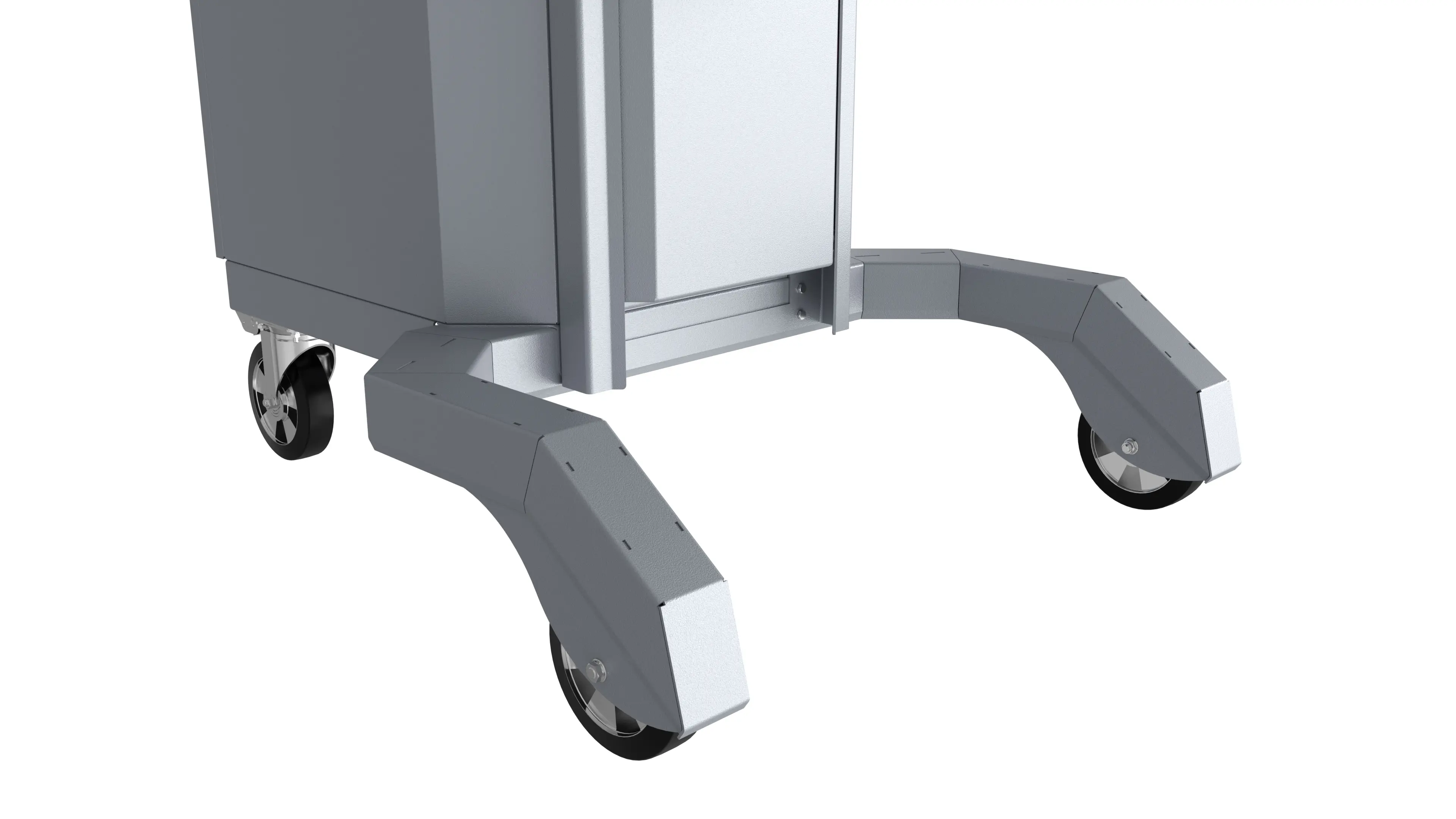

    Mobility despite its size: Thanks to built-in forklift pockets, the DA5 can be easily moved even with its substantial weight and flexibly positioned at various locations—without the need for time-consuming disassembly.

    Mobility despite its size: Thanks to built-in forklift pockets, the DA5 can be easily moved even with its substantial weight and flexibly positioned at various locations—without the need for time-consuming disassembly.

    Adapts. And absorbs more.

    The DA5 is designed for processes where volume, weight, and disposal are not secondary considerations but rather dictate the production cycle. Its infinitely adjustable, filtering separation unit makes all the difference: it adapts with millimeter precision to the customer’s own containers, big bags, or collection stations. The material to be extracted is separated right where it belongs—without transfer, without intermediate containers, and without additional process steps.

    Combined with high flow rates, a large filter area, and a robust steel housing, the DA5 reliably handles even large volumes and heavy suction material in continuous operation. Emptying intervals become predictable, material flows remain stable, and the daily workload is noticeably reduced. In short: The DA5 integrates into your material flow—not the other way around.

    Customized disposal without detours

    • Infinitely adjustable separation unit
    • Direct transfer into the customer’s own containers
    • No transshipment, no additional handling effort

    Built for large volumes

    • High flow rate for large volumes of heavy material
    • Large filter area for consistent performance
    • Designed for continuous industrial processes

    Clean processes, clear procedures

    • High separation efficiency thanks to sophisticated airflow design
    • Longer service life, less maintenance
    • Waste disposal becomes part of the process—not its bottleneck

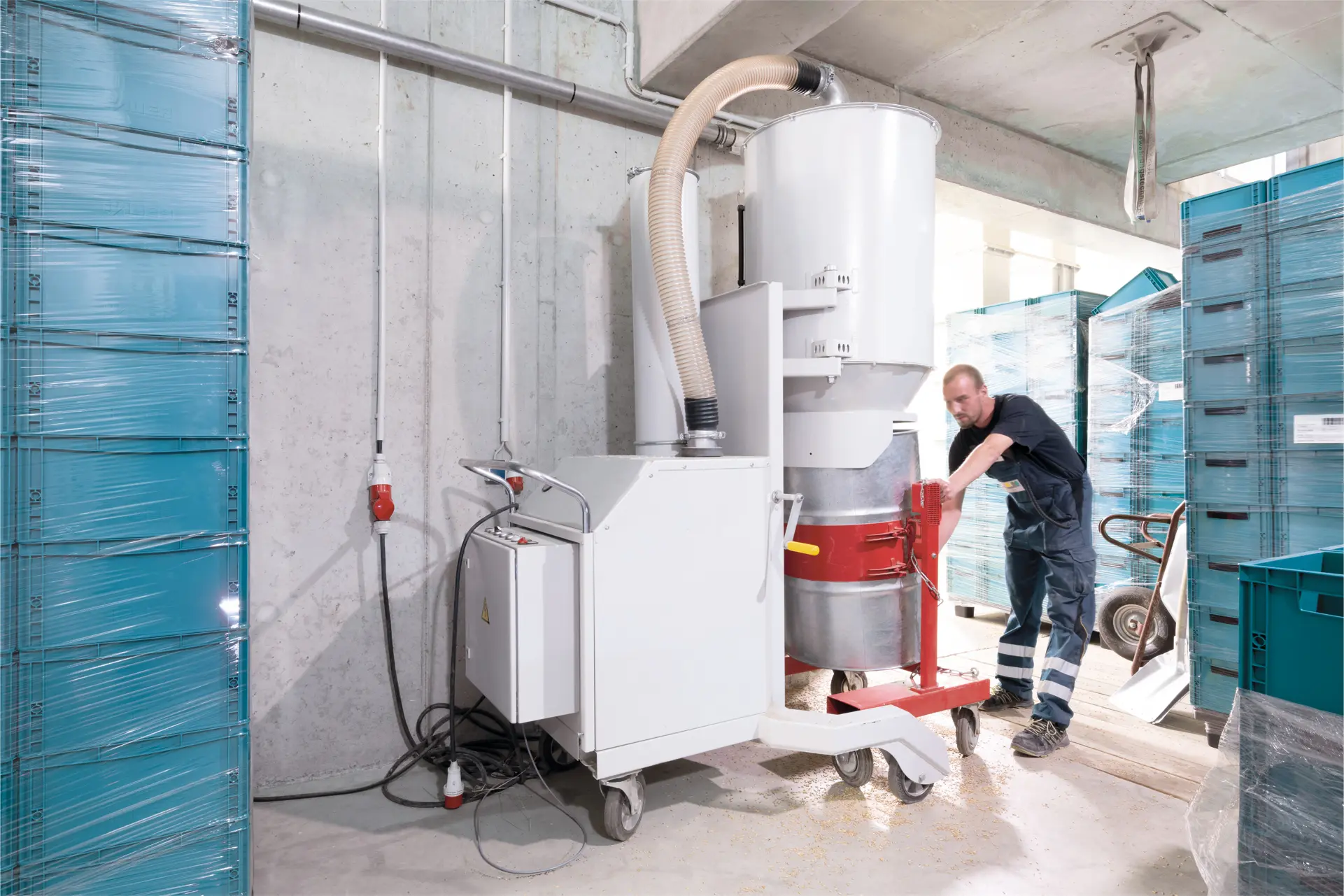

    Strength that goes wherever you go.

    Strength that goes wherever you go.

    The DA5 combines extreme suction power with a level of mobility that is not common in the high-performance segment. Its 15-kW side-channel blower delivers consistently high vacuum pressure and large air volumes—designed for continuous 24/7 operation, without belts, without loss of performance, and without unnecessary wear.

    At the same time, the DA5 remains mobile within the process: integrated forklift pockets and the sturdy frame construction make it possible to move the vacuum cleaner quickly and safely to different locations. This way, performance adapts to demand—not the other way around.

    Whether stationary on a production line or flexibly deployed between multiple disposal points: The DA5 is where large volumes accumulate and remains reliable when it matters most.

    Built for continuous use

    • – 15-kW three-phase drive
    • – Side-channel blower with no belt wear
    • – Consistent performance in 24/7 operation

    Mobile despite high performance

    • – Integrated forklift pockets
    • – Safe handling even with heavy loads
    • – Ideal for changing work locations

    Performance that drives processes

    • – High vacuum pressure and high flow rate
    • – Reliable when handling heavy materials
    • – Designed for demanding industrial environments

    Thinking ahead.

    At RUWAC, it all starts with a simple question: What do you really need?

    Whether it’s a standard model, a modular design, or a custom-built system—we don’t build for the average, but for specific applications. For your processes. Your requirements. Your safety. We make what’s technically feasible a reality. And what doesn’t exist yet, we develop—together with you.

    Because when it comes to industrial extraction, we never settle for standard solutions. Only for the best solution.

    Strong in the details.

    RUWAC industrial vacuum cleaners aren’t just made of high-quality components—they’re built on well-thought-out solutions. From the housing to the filtration technology, every detail is designed for durability, safety, and efficiency. For everyone who relies on reliable technology every day.

    Performance without compromise.

    The powerful 15-kW side-channel blower delivers consistently high vacuum pressure and large air volumes—designed for heavy materials and high flow rates. No belts, no power loss, no unnecessary wear. The industrial design variant is designed for continuous 24/7 operation and remains stable even under constant load. For processes where performance isn’t an option, but a requirement.

    Adjusts to the situation. And remains precise.

    The DA5’s filtering separation unit can be lowered continuously and adjusted precisely to fit a variety of customer containers. Whether it’s a big bag, a container, or an existing collection station—the vacuum system integrates directly into the existing material flow. This reduces the need for transfer operations, eliminates the need for additional equipment, and keeps processes streamlined and clean. Flexibility that truly makes everyday operations easier.

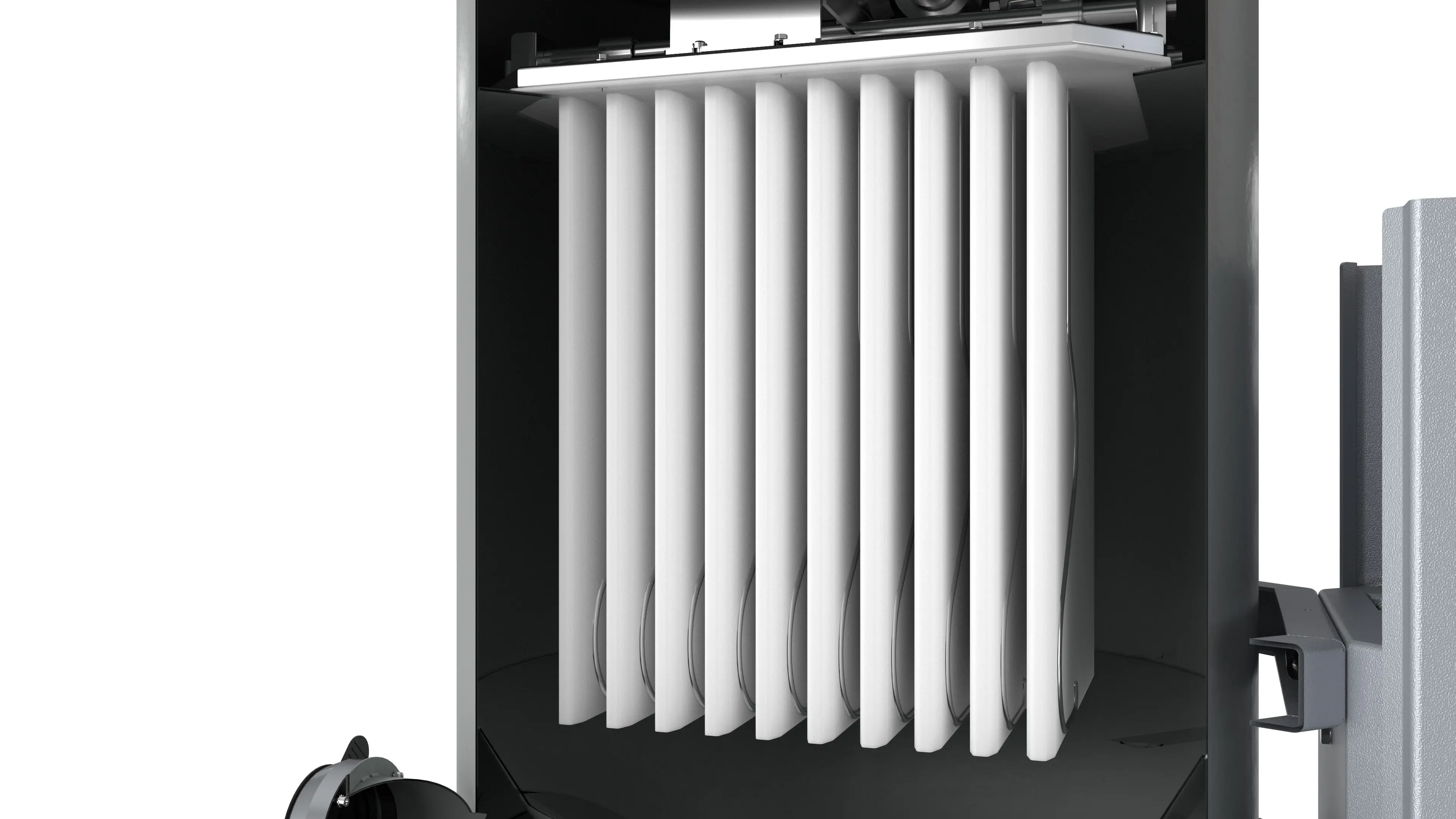

    Large filter surface area. Quiet operation.

    The large 4.5-square-meter pocket filter ensures low filter loading and a long service life—even when handling large amounts of dust. The differential pressure-controlled automatic cleaning system maintains consistent filter performance without interrupting the process. Optionally available in dust classes M or H for applications with heightened health and safety requirements.

    Built for movement during the process.

    Despite its power class, the DA5 remains easy to handle. The built-in forklift pockets allow for safe transport within the facility or between work sites. This ensures the vacuum cleaner is available exactly where it’s needed—without detours or improvisation.

    Maintenance that goes the extra mile.

    Maintenance that goes the extra mile.

    Industrial vacuum cleaners have to work—all the time. With over 30 service technicians throughout Germany, we’re there when you need us. In person. Fast. Right on site.

    Our experts are highly qualified and know your machine inside and out. They typically carry replacement and wear parts, as well as all necessary tools, right in their vehicles. This allows many problems to be solved immediately—without any waiting time.

    RUWAC Service keeps your production running, protects the value of your investment, and extends the service life of your equipment. And with predictable maintenance costs, you retain full control at all times.



    Protects what matters. Without compromise.

    What sets RUWAC apart is that we take responsibility. For people, processes, the environment—and for the moment when it really counts. Our equipment is designed for maximum safety. And so are we. From explosion protection to health and sustainability to fast on-site service: at RUWAC, safety means you can rely on everything. And on everyone.

    Product safety

    Product safety

    Our industrial vacuums meet the highest safety standards - optionally with ATEX certification, a robust design, and well-thought-out protection mechanisms. For permanently safe operation - even under extreme conditions.

    Workplace safety

    Workplace safety

    Ergonomic design, easy handling, and clearly recognizable controls reduce risks in everyday work - and create more safety directly at the point of use.

    Health protection

    Health protection

    We filter before danger arises: our systems minimize fine dust exposure, reduce noise emissions, and actively contribute to workplace health protection.

    Environmental protection

    Environmental protection

    Sustainability is an integral part of our development process. Our systems are energy-efficient, built to last, and made from recyclable materials.

    Fast local support

    Fast local support

    Safety through proximity: our sales and service teams are deployed nationwide - with experience, technical know-how, and what often matters most: availability. Our service technicians carry many spare parts directly in their vehicles - for immediate help without waiting.

    Investment security

    Investment security

    A Ruwac lasts. High-quality components, modular technology, and reliable support safeguard your investment - today and for many decades to come. This creates real operational security - backed by manufacturing in Germany that sets standards in sustainability, efficiency, and occupational safety.

    Why RUWAC is the best place to buy your industrial vacuum.Why RUWAC?

    Handmade in Riemsloh

    Every vacuum cleaner is manufactured in our own facility in Riemsloh—ensuring uncompromising quality from start to finish.

    The perfect vacuum cleaner for you

    We listen—and then develop a solution that perfectly meets your needs.

    Extremely durable

    Whether it's fiberglass-reinforced plastic or sheet steel—we rely on materials that are sturdy, durable, and safe. Even under the toughest conditions.

    The Right Filter

    Specialized filters tailored to your specific application—developed in collaboration with leading filtration experts.

    Always one step ahead

    Decades of experience—combined with our own research and development.

    50 Years of Quality

    Committed to building the best vacuum cleaners since 1976. Every day.

    In-depth insights.

    PDF Downloads

    Frequently Asked Questions (FAQ)

    The DA5 is designed for industrial applications involving large amounts of dust, heavy materials, and high airflow rates. Typical applications include foundries, steel and metal processing, the cement and building materials industries, and any environment where robust equipment is required for continuous operation.

    It enables direct discharge into the customer’s own containers, such as big bags, containers, or existing collection systems. This reduces the need for transfer operations, saves time, and seamlessly integrates the DA5 into existing material flows.

    Yes. The DA5 is specifically designed for continuous operation. The durable side-channel compressor, the robust steel housing, and the automatic filter cleaning system ensure consistent performance even during prolonged operation.

    The DA5 features a large-area pocket filter and an automatic filter cleaning system controlled by differential pressure. This ensures consistently high suction power while minimizing maintenance requirements and downtime.

    Der DA5 ist ATEX-konform für Zone 22 erhältlich und damit für den sicheren Umgang mit brennbaren Stäuben ausgelegt. Die entsprechende Ausführung berücksichtigt alle relevanten sicherheitstechnischen Anforderungen.

    Despite its power class, the DA5 is easy to move. Built-in forklift pockets allow for safe and quick relocation within the production area or between work sites—ideal for changing work locations.

    Yes. The filter class (M or H), separation concept, and other equipment details can be configured to suit specific applications. The result is a vacuum cleaner that is perfectly tailored to the process, material, and infrastructure.

    DA 5150
    DA 5150three-phase current

    Housing

    sheet steel

    Motor power

    15 kW

    voltage

    400 V

    Vacuum pressure

    -310 mbar

    Vacuum pressure (short-term)

    -350 mbar

    Air flow rate (measured with a 3-meter hose)

    860 m³/h

    Sound pressure level (according to DIN 45635-01-KL3)

    75 dB(A)

    Pocket filter, dust class M

    4.5 square meters

    Residual dust filter, dust class H

    10 square meters

    Height without pre-separator, lowered

    2,100 mm

    width

    1,110 mm

    Length

    1,900 mm

    protection class

    IP 54

    capacity

    custom

    Stroke of the separation unit

    630–1,230 mm

    DA5

    More power. More volume. More freedom.

    DA5
